BMW TCU tuning - ZF 8HP automatic gearbox

BMW TCU Tune Guide: ZF 8HP, DCT and xHP Gearbox Tuning

BMWs are celebrated for precision handling, potent engines, and engaging driving dynamics, but one of the most underappreciated components in how the car actually feels is the transmission. Whether you're driving a turbocharged G20 330i or an F82 M4, the Transmission Control Unit (TCU) decides how power is delivered to the wheels. A TCU tune recalibrates shift behaviour, responsiveness, and gearbox performance, and at RPM Tuning we flash almost as many gearboxes as we do engines. Our TCU work is built on the xHP Flashtool, the most proven remap platform for BMW automatics, and we configure it in-house to match each car.

This guide covers BMW gearbox history, the types used, exactly what a TCU flash with xHP lets us change, and what a tune genuinely delivers, without the overclaims.

A Brief History of BMW Transmission Engineering

BMW has always treated transmission design as integral to driving engagement. Automatics evolved from 4-speed ZF gearboxes to today's 8-speed units and dual-clutch systems. Key milestones include:

ZF 5HP and 6HP: Used in E39, E46, and early E60 models. The 6HP is reliable and, importantly, flashable with xHP, though it is slow by modern standards.
Getrag manuals: Stalwarts of driving pleasure in E36 and E46 M models.
SMG (Sequential Manual Gearbox): A hydraulically actuated manual in the E46 M3 and E60 M5. Known for brutal, engaging shifts, plus a few quirks. It is a distinct automated-manual system and is not the same technology as the torque-converter automatics or dual-clutch boxes we flash, so it sits outside TCU tuning entirely.
DCT (Dual-Clutch Transmission): The 7-speed Getrag GS7D found in the F80 M3 and F82 M4. Fast, crisp, responsive, and fully supported by xHP.
ZF 8HP: Introduced in the F-series and refined in the G-series, one of the most advanced and tunable torque-converter automatics in the world.

Types of BMW Gearboxes and Tuning Potential

BMW uses several gearbox types across its model range. The three that xHP supports, and that we flash regularly, are the ZF 6HP, the ZF 8HP, and the 7-speed dual-clutch.

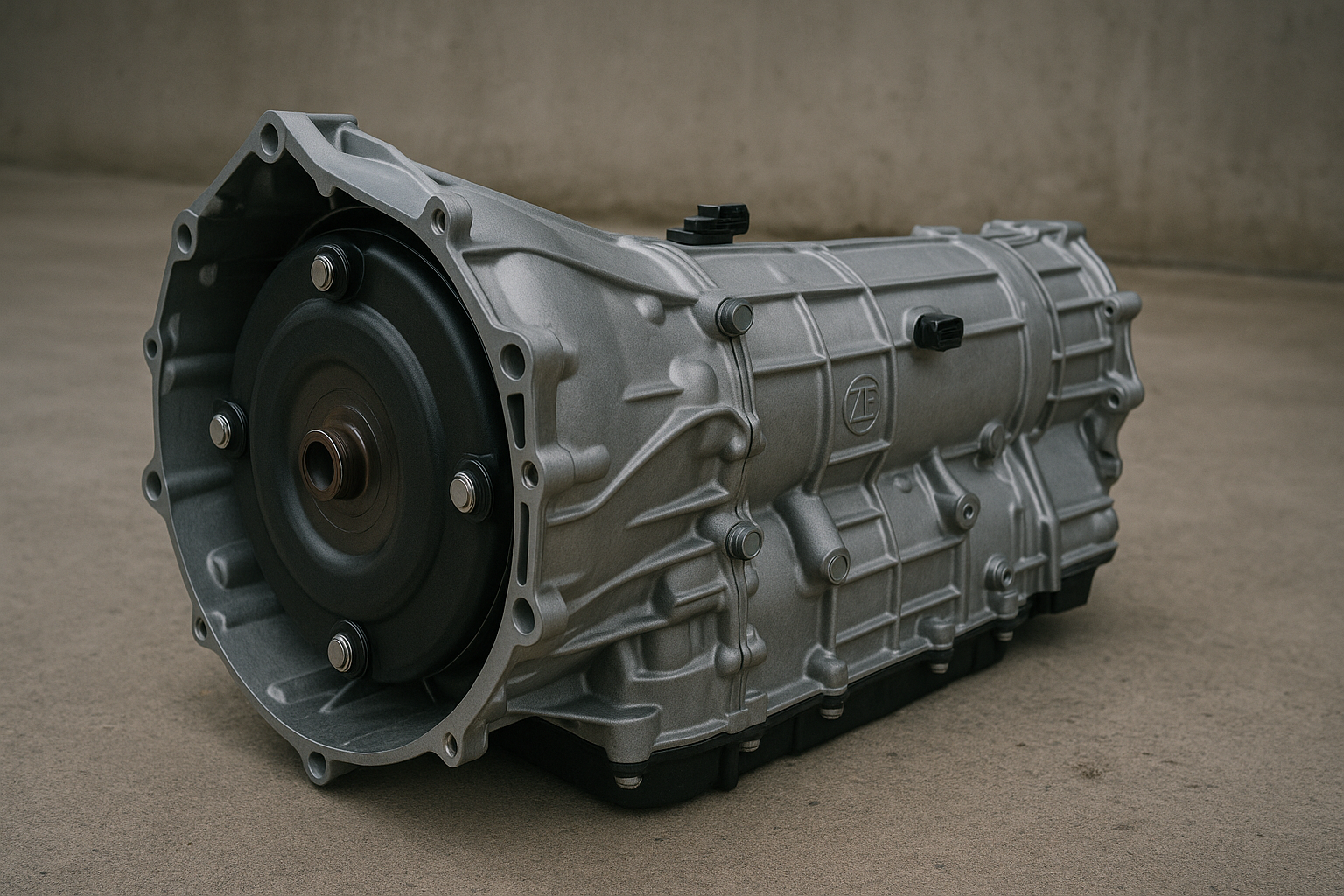

1. ZF 8HP (8-Speed Automatic)

Found in most modern BMWs (e.g., G20 330i, G30 540i, G01 X3)
Lightning-fast shifts, smooth torque delivery
One of the strongest OEM torque-converter automatics ever built, with real headroom for tuned engines
Extremely tunable via xHP, which is our go-to platform for the 8HP

2. DCT (7-Speed Dual Clutch)

The Getrag GS7D, found in M models (F80/F82 M3/M4, F10 M5)
Known for aggressive, instant shifts
Tunable via xHP for shift aggression, launch control, kickdown launch behaviour, and shift points

3. ZF 6HP (6-Speed Automatic)

Found in E60, E90, E70 and similar era cars
Older and slower than the 8HP, but genuinely responsive to a flash
Supported by xHP, including a warm-up-phase skip and its own drag and launch strategies

4. Manual (5MT/6MT) and SMG

Manuals are not TCU-based, though some ECU tunes can adjust rev-matching and throttle blips
SMG is an automated manual with hydraulic actuators (E46 M3, E60 M5). It is a different, largely unsupported system and is not flashable with xHP, so we do not offer TCU tuning for it

What Is a TCU Tune, and What Does xHP Actually Change?

The TCU controls every aspect of how your transmission behaves:

Shift speed and timing
Torque converter lock-up (in automatics)
Launch control behaviour
Shift firmness and aggressiveness
Kickdown and throttle blip response
Gear holding across driving modes
Per-gear electronic torque limits and line pressure

A TCU tune modifies the factory programming to sharpen performance and responsiveness without changing physical hardware. When we flash your TCU with xHP, the work is done through the OBD port over a wireless adapter using a phone, tablet, or laptop app. There is no gearbox removal and no bench rig, and every change happens within the engineered limits of your specific transmission.

The tune is also fully reversible. xHP keeps a stock backup, called Stage 0, so we can return your gearbox to its exact factory calibration at any time, which matters for warranty visits, resale, or simply wanting standard behaviour back.

The xHP Stage Structure

xHP organises its maps into three stages, and it helps to know what each one does:

Stage 1: Removes the factory torque limiters so an engine tune can actually deliver the torque it makes, enables proper ECU tunes to run cleanly, and adds a gear display (D1 to D8). This is the baseline that lets the gearbox stop fighting the engine.
Stage 2: A full transmission remap. Faster shifts, stronger throttle blips in the sport modes, and sharper throttle response throughout.
Stage 3: Race-level calibration. Very fast shifts, race-style automatic shifting in Sport+, and a reconfigured launch control aimed at enthusiasts and track use.

Key Benefits of a TCU Tune

1. Faster Shifts

Reprogramming the shift logic significantly reduces shift times, improving acceleration and cutting lag.

ZF 8HP: dramatically quicker, firmer shifts
DCT: snappier, more consistent shifts at redline

2. Optimised Shift Points

Factory shift points are conservative, aimed at comfort and emissions. A tune recalibrates when upshifts and downshifts occur so the engine stays in the powerband longer. With the xHP Shiftmap Editor we can adjust up and down shifts individually in both D and S, save the result, and refine it to how you actually drive.

Holds gears longer under throttle
Downshifts more intelligently when decelerating

3. Improved Throttle Matching and Blips

In sport or manual mode, a tuned TCU delivers smoother or more aggressive throttle blips during downshifts, improving driver engagement and reducing jerkiness. Blip intensity is adjustable, so we can dial the drama up or down to taste.

4. Per-Gear Torque Limits: Matching the Gearbox to the Engine

This is the core reason a tuned car needs a TCU flash. The ZF and DCT gearboxes carry an electronic torque limiter for each individual gear, and different gears have different torque capacity. A Stage 1 or Stage 2 ECU tune can make more torque than the stock TCU calibration will pass through, so the box quietly caps what reaches the road. On the ZF 8HP behind a Stage 2 B48, the torque limiter starts capping delivered torque as it approaches roughly 500Nm, which is exactly why matching the flash to the engine is what lets that torque get to the wheels.

Setting sensible per-gear limits does two jobs. In the low gears it improves traction on powerful rear-wheel-drive cars, and across the board it helps prevent clutch slip on a tuned car. Two gears are the usual weak points: 6th gear on the 8HP and 4th gear on the 6HP are the common slip points on high-power builds, so those are the gears we watch most closely.

Raise torque limits to match the engine tune, gear by gear
Remove unnecessary throttle closures
Improve power delivery in 1st and 2nd gear

5. Line Pressure for High-Power Builds

For genuinely high-output cars, xHP can apply what it calls a line pressure bump, raising transmission line pressure by around 15% to increase the clutch pack's torque capacity. It is load-dependent, so it only comes on in high-torque situations and leaves normal cruising untouched. This is our first move if a build is slipping in 6th gear on the 8HP or 4th gear on the 6HP, because more clamping force is what holds the clutches together when the engine is making serious torque.

6. Adjustable Torque Reduction on Upshifts

During an upshift the TCU normally pulls engine torque back for a fraction of a second to protect the drivetrain. xHP lets us tune how much. Less reduction keeps the turbo spooled and cuts the lag you feel after a shift, which suits a boosted engine. More reduction gives a faster, crisper, more audible shift. There is a genuine trade-off here, and being able to set it lets us match shift behaviour to your engine tune and driving style rather than accept one factory compromise.

7. Drag Race Mode and Custom Launch Control

For straight-line performance, xHP includes a Drag Race Mode that disables torque reduction during shifts, maxes shift pressure, and raises the clutch-protection thresholds so full engine power goes down during launch and hard acceleration. It engages automatically during launch control and, on the 8HP, in Sport+ with DSC off above roughly 40% throttle (on the 6HP it activates in Manual under the same kind of load), so your normal Comfort driving is completely unaffected.

Stock launch control is calibrated for a stock car, so on a tuned car it needs re-tuning. With xHP Custom Launch Control we can set launch RPM, wheel slip targets, brake-boost torque, and more to suit your actual power level and tyres. On the DCT there is also a configurable kickdown launch, where we set the clutch engagement RPM and how quickly the clutch bites.

8. It Is Not Just for Racers: Daily and Comfort Tweaks

A TCU flash is just as useful for the daily commute as it is at the strip. xHP includes a set of comfort features we set up on request:

Fuel Saver: an economy tweak that trims fuel use without the sluggish, rubbery throttle of the stock ECO Pro mode
Take Off in 2nd Gear: smoother, more controlled starts on slippery surfaces
Valet or Kids Mode: caps revs to roughly 2,500 to 3,000 rpm, locks the box in its calmest mode, and disables launch control, so the car is safe to lend out
Auto Start/Stop suppression: turns off the stop-start system by default rather than every time you get in
Other refinements: standstill decoupling on or off, configurable creep on the DCT, a true-manual mode that holds gears to redline instead of auto-upshifting, and rear axle ratio adjustment if you have changed your differential

There is one race-only setting worth flagging clearly. xHP can disable the transmission's temperature monitoring, which removes the factory overheat power-reduction. That is strictly a track option: without it the gearbox will not protect itself from heat, so it carries a real drivetrain risk and has no place on a road car. We only ever set it for dedicated track use.

9. More Consistent, Controlled Shifts

You'll sometimes see TCU tunes marketed as extending gearbox life. We'd put it more honestly. The ZF 8HP and the Getrag DCT are among the strongest OEM transmissions BMW has ever fitted, and xHP develops its maps within those hardware limits. On a tuned car, the per-gear torque limits and line pressure options are what protect the clutches, by keeping delivered torque inside what each gear can hold and clamping the packs harder when it counts. Firmer, matched shifts mean less slip during each gear change. That is a real benefit, but long-term health still comes down to fluid maintenance and sensible power levels, not the flash itself. On a tuned B48 running Stage 1 or beyond, matching the TCU calibration to the engine's torque output is what keeps the gearbox operating the way ZF intended.

Is It Safe?

Done with reputable tools and healthy hardware, TCU tuning is safe and effective. A few rules we follow on every car:

Always check transmission fluid health before flashing
Use maps and torque limits appropriate for your power level
Keep Stage 0 on hand, so the box can always go back to stock
Reserve the race-only settings, such as disabling temperature monitoring, for cars that genuinely see the track

One myth worth clearing up: ZF markets the 8HP's fluid as "lifetime fill", but in practice the fluid and filter pan should be serviced every 60,000 to 80,000 km (roughly 37,000 to 50,000 miles). We consider that non-negotiable on any tuned car, the same way we approach the rest of the maintenance schedule that keeps a BMW reliable. Pairing that with a proper pre-tune inspection is how we make sure the gearbox is ready before we flash it.

Final Thoughts

A TCU tune is one of the most transformative upgrades you can apply to a modern BMW. It sharpens response, unlocks the gearbox's potential, and complements engine tuning perfectly, with very little downside on healthy hardware since it is fully reversible. Whether you're daily driving a G20 330i or pushing a Stage 3 F82 M4, the benefits are clear: faster shifts, more control, torque that actually reaches the road, and a more engaging drive.

FAQ

Does a TCU tune add horsepower?

Not directly, power comes from the engine tune. A TCU tune raises the gearbox's per-gear torque limits and sharpens shift behaviour so the power your ECU tune makes actually reaches the wheels.

Do I need an ECU tune before a TCU tune?

No, an xHP flash transforms even a stock car with faster shifts and better throttle response. But the two work best together: a tuned engine needs matching TCU torque limits, so we usually flash both in the same visit.

Is a TCU tune reversible?

Yes. xHP keeps a stock Stage 0 backup, so we can return your gearbox to its exact factory calibration whenever you want, whether for a warranty visit, resale, or simply going back to standard behaviour.

Does a TCU tune protect my gearbox on a tuned car?

It helps in a specific way. The per-gear torque limits keep delivered torque inside what each gear can hold, and the line pressure option clamps the clutches harder on high-power builds, which is what fights clutch slip. It is not a magic longevity fix, though. Fluid condition and sensible power levels still do the heavy lifting for long-term health.

Is xHP safe for the ZF 8HP gearbox?

Yes, xHP works within ZF's hardware limits and is the most proven tool for the 8HP. The bigger safety factor is fluid condition, which is why we check it before every flash.

How often should ZF 8HP fluid be changed?

Every 60,000 to 80,000 km (about 37,000 to 50,000 miles) with the filter pan, despite the "lifetime fluid" marketing, sooner if the car is tuned or driven hard.

How long does a TCU flash take?

Typically under an hour on most F- and G-series cars, done via the OBD port with no hardware changes. WhatsApp us for a quote for your model.

Ready to Tune Your BMW?

If your gearbox still shifts like it left the showroom, an xHP TCU tune is the fastest way to wake it up, and it is fully reversible if you ever want stock back. RPM Tuning builds and tunes these cars every week, from Stage 1 flash tunes to full turbo builds, and we publish real dyno numbers, not promises.

WhatsApp us for a consultation, or follow the builds on Instagram and YouTube.
