Charge Pipe Kit 2014–2025 BMW 1/2/3/4/5 Series/X3/X4/Z4 – B48

$279.00 USD
Description

A direct bolt-on charge pipe kit for the BMW B48, replacing the failure-prone factory plastic charge pipe with CNC-machined aluminium. It's a smart preventative upgrade whether you're stock or tuned, handling boost the plastic original can't and sharpening throttle response.

Specifications

  • CNC-machined aluminium, black powder-coated, TIG-welded
  • Precision-machined throttle body flange for a clean seal
  • OEM-style C-clip connection and 3-ply silicone couplers included
  • Pre-plugged 1/8" NPT bung for future water-methanol injection
  • Direct bolt-on, fits RHD and LHD

What it does

  • Replaces the factory plastic charge pipe, which is known to crack under boost and age, with aluminium that removes that failure risk.
  • Holds boost tight through the OEM-style C-clip and machined flange, so you're not chasing boost leaks or blown couplers down the line.
  • Flows better through an enlarged internal diameter that reduces turbulence for higher airflow.
  • Lets you add water-methanol injection later through the pre-plugged bung, with no drilling.

Build quality

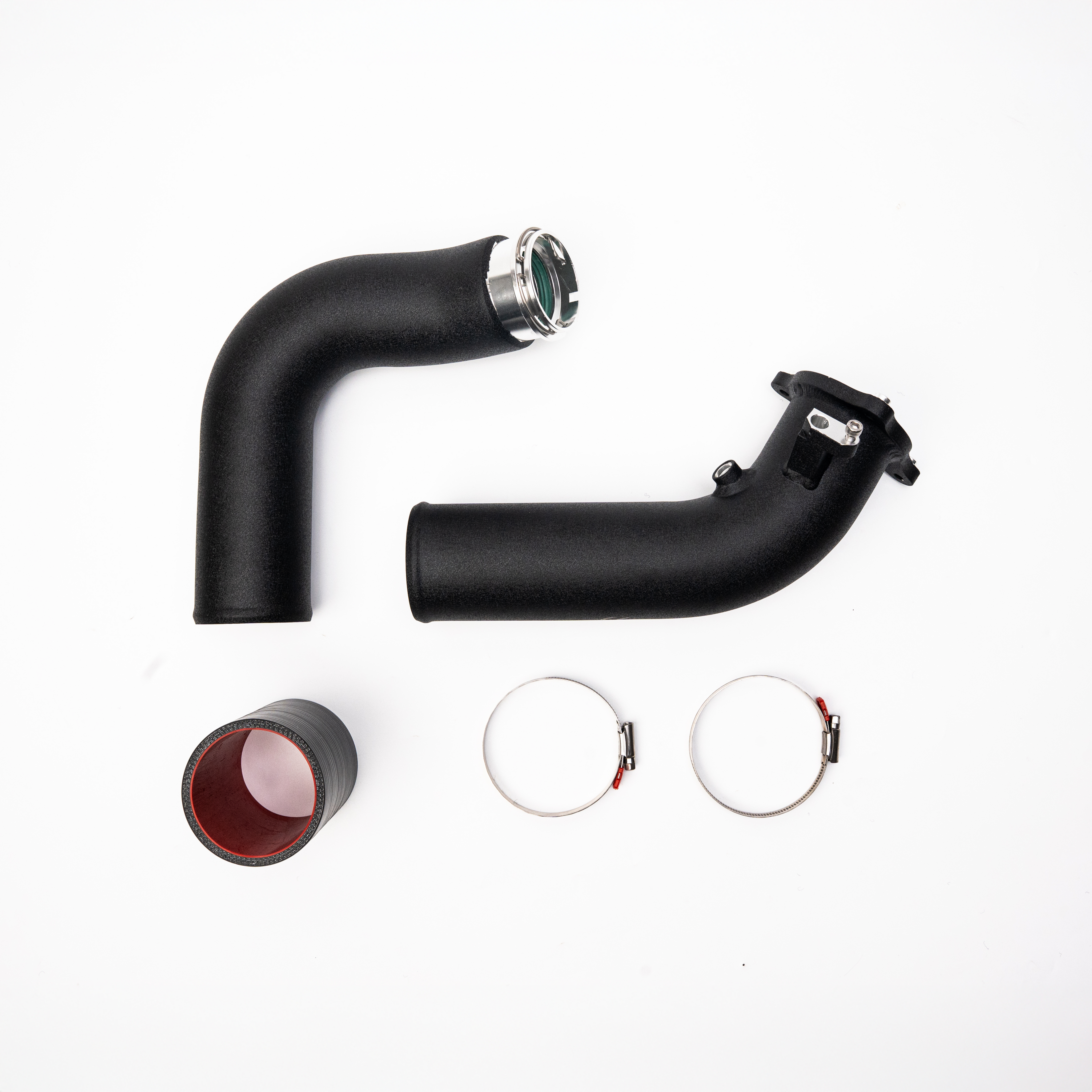

CNC-machined and TIG-welded aluminium with a durable black powder coat, supplied with high-temp 3-ply silicone couplers and all hardware. Compatible with OEM and aftermarket intakes and turbo inlets. Backed by a lifetime warranty.

Compatible Models

Fits BMW B48 engines across F- and G-chassis:

1 Series: F20/F21 LCI (2015–2019)
2 Series: 220i (F22/F23 incl. LCI, 2015–2021) · 220i (G42, 2020–2025)
3 Series: 320i/330i (F30/F31/F34 LCI, 2014–2019) · 320i/330i (G20/G28 Pre-LCI & LCI, 2017–2025)
4 Series: 420i/430i (F32/F33/F36 incl. LCI, 2015–2021) · 420i/430i (G22/G23/G26 Pre-LCI & LCI, 2019–2025)
5 Series: 520i/530i (G30/G31/G38 Pre-LCI & LCI, 2015–2024)
6 Series: 630i GT (G32 incl. LCI, 2016–2024)
7 Series: 730i (G11/G12 Pre-LCI & LCI, 2014–2022)
X3: G01/G08 Pre-LCI & LCI (2016–2024) · X4: G02 Pre-LCI & LCI (2017–2025)
X5: G05 (2018–2021) · G18 (2021–2023) · X6: G06 (2018–2023)
Z4: sDrive20i/30i (G29, 2017–2025)
