The Benefits of an Aftermarket Cold Air Intake System for Tuned B48 and B58 Engines

Why Intake Flow Matters When Tuning BMW’s Turbocharged Platforms

When it comes to tuning turbocharged BMW engines like the B48 (2.0L I4) and B58 (3.0L I6), most attention goes to ECU remaps, downpipes, and fueling — but one of the most overlooked and yet impactful upgrades in a tuned build is the cold air intake (CAI) system.

While the stock intake is engineered for efficiency, emissions compliance, and cost, it becomes a flow restriction as power and boost levels increase. An aftermarket CAI isn’t just for aesthetics or sound — it offers real-world gains in airflow, throttle response, and turbo efficiency, especially in tuned or hybrid turbo applications.

In this article, we’ll break down the engineering role of an intake system, the limitations of OEM airboxes, and the performance and reliability benefits of upgrading to an aftermarket solution for your B48 or B58-powered BMW.

🧠 The Role of the Intake System in a Turbocharged Engine

The intake system’s core purpose is to deliver cool, clean, and unrestricted air to the turbocharger. In a turbocharged engine, air is drawn in through the intake, compressed by the turbo, and then forced into the combustion chamber. The more efficiently you can feed the turbo, the more efficiently it can generate boost — especially at higher RPM and load.

Key performance goals of an ideal intake system:

• Maximize airflow (CFM) to reduce turbo lag and improve spool

• Minimize intake air temperatures (IATs) for better combustion

• Maintain consistent air velocity for stable MAF/MAP readings

• Reduce pressure drop across filters and bends

🚫 The Limitations of OEM Airbox Designs

While BMW’s factory intake systems are well-engineered for emissions and noise control, they introduce several performance compromises that become problematic at tuned power levels:

🔍 Common Bottlenecks in OEM B48/B58 Intakes:

The B48, the stock intake begins to restrict performance even at Stage 1+, while the B58 system — though slightly better — still becomes inefficient during Stage 2 or ethanol-based builds.

⚙️ Aftermarket Cold Air Intakes: Key Technical Benefits

1. ✅ Improved Airflow Volume and Velocity

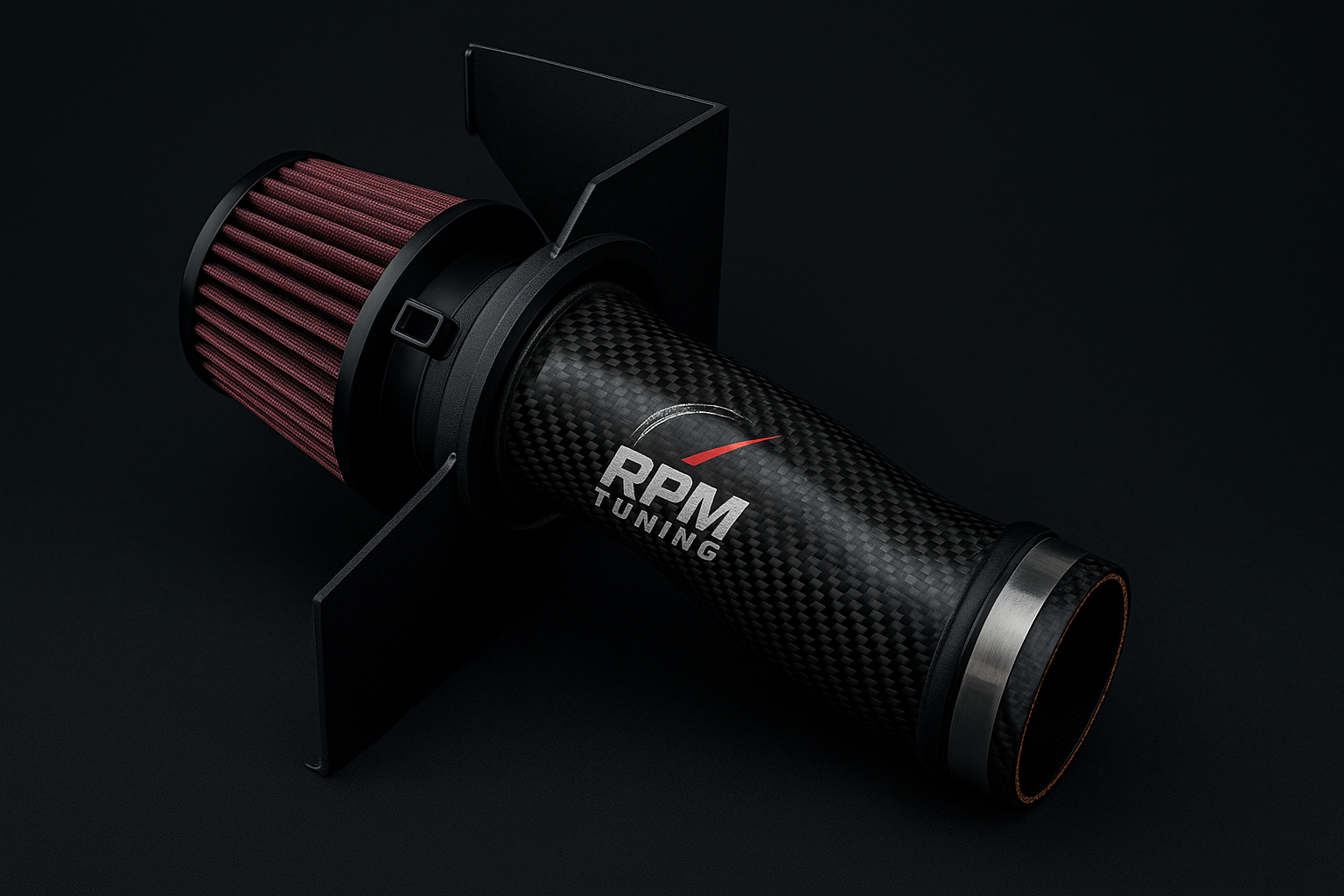

Aftermarket intakes use larger diameter piping, high-flow cone filters, and smooth mandrel bends to maximize CFM (cubic feet per minute) to the turbo. Many kits use velocity stacks to reduce turbulence and enhance laminar flow into the compressor inlet.

Impact:

• Faster turbo spool

• Improved boost onset and throttle response

• Greater power potential at higher RPM

2. ❄️ Lower Intake Air Temperatures (IATs)

Cold air intakes often relocate the filter away from the engine’s heat zone and incorporate heat shields or sealed housings to isolate it from radiant heat. Some systems also integrate ducts or scoops for ram-air effect.

Impact:

• Lower IATs = denser air charge

• Reduces knock risk and allows more ignition timing

• Better consistency under repeated pulls or track use

3. 🔊 Enhanced Induction Sound

Although not performance-critical, CAIs offer a more pronounced turbo spool, bypass valve flutter, and overall sharper engine tone — giving the driver better feedback and mechanical presence.

Impact:

• More engaging driving experience

• Does not affect tuning unless combined with BOV or MAF changes

4. 🔧 Support for Higher Power Levels

As airflow demand increases with tuning, ethanol blending, or hybrid turbo upgrades, the stock intake becomes a bottleneck. Aftermarket CAIs are built to support 450+ hp on B48 and 600+ hp on B58 setups.

Impact:

• Enables higher boost targets with lower pressure drop

• Prepares the engine for future upgrades (turbo inlets, meth injection, etc.)

🧪 Intake + Tune Synergy: Why They Work Together

Upgrading to an aftermarket intake alone may show limited gains on a dyno (typically 5–12 hp), but its true benefit is unlocked when paired with ECU tuning.

Most tuning platforms like MHD, BM3, and Ecutek allow recalibration of:

• Turbo load targets and wastegate duty

• Lambda and ignition timing curves

• MAF scaling or MAP sensor compensation

• IAT-based ignition correction

For example, running a Stage 2 tune on a B58 with a restrictive OEM intake may result in higher turbo duty cycles, increased IATs, and reduced ignition timing — all of which limit performance. With a CAI installed, the ECU can safely command more power.

🧰 Top-Rated Intake Brands for B48 & B58 Platforms

Each of these systems is designed with a balance of performance, aesthetics, and thermal management in mind. We typically recommend open filter setups for maximum sound and flow, and enclosed systems for heat management in warmer climates.

📊 Estimated Gains & Supporting Mod Synergy

Note: Gains vary based on ambient temperature, tune, and fuel quality.

🛡️ FAQs: Daily Driving and Maintenance Considerations

• Will it cause a CEL?
  No, as long as your intake is designed for your platform and the sensors (MAF or MAP) are properly integrated.

• Will it void warranty?
  It depends on regional laws and dealership discretion. A CAI alone is unlikely to damage the engine, but some dealers may flag any modification.

• What about cleaning?
  Most filters are reusable. Clean every 15,000–20,000 km, and re-oil (if oiled) as needed. Dry filters offer better MAF sensor longevity.

✅ Conclusion: More Than Just a Sound Upgrade

An aftermarket cold air intake is an essential piece of the puzzle when tuning a BMW B48 or B58 engine. While it may not be the first mod you install, it unlocks greater efficiency, thermal stability, and performance potential — especially at Stage 2 or above.

At RPM Performance, we offer tested intake solutions for all G20, G30, and Supra platforms. Whether you're chasing better throttle response, cooler IATs, or planning a 500+ hp hybrid build, we’ll match the right intake to your goals and support it with the tuning and hardware you need to make it work reliably. Reach us now, and lets get started!
